Emission Deletes & ECU Tuning for GM Duramax Trucks (USA Market)

Supported ECUs: ACDelco E41, E42, E46, E66, E98

If you're running a Duramax-powered GM truck, and looking for emissions delete and performance tuning solutions, AUTO-REMAP offers a proven service designed for diesel enthusiasts, fleet operators, and tuning shops across North America. We support all major GM diesel ECUs, including:

✅ ACDelco E41 & E42 – 6.6L Duramax L5P / L5D

✅ ACDelco E66 – 3.0L Duramax LM2 / LZ0

✅ ACDelco E46 – 3.0L Duramax LM2 (2020–2022)

✅ ACDelco E98 – 2.8L Duramax LWN

🛠️ ACDelco E41 & E42 – 6.6L Duramax L5P / L5D

Found in:

• Chevrolet Silverado 2500HD / 3500HD
• GMC Sierra 2500HD / 3500HD
• Chevrolet Express / GMC Savana 4500
• Medium-duty and commercial chassis

Supported OS numbers:

• 12690762, 12690763, 12692043, 12697840, 12697841, 12698093,
• 12698595, 12699524, 12704854, 12708075, 12708517, 12709842,
• 12709843, 12709844, 12710937, 12714514, 12718488, 12720289,
• 12723939, 12725870, 12728644, 12729375, 12730511, 12730512,
• 12731638.

ACDelco E42 — 2024+ trucks, its own operating systems:

• 12737238, 12737841, 12739529, 12741307,
• 12741821, 12742449, 12747552, 12747816,
• 12748390, 12748391, 12748392.

The E41 and E42 lists do not overlap, so identify the controller by OS number rather than by model year.

Services available:

✅ Full DPF, EGR, and SCR/DEF deletes

🚫 Speed limiter removal

🔄 Raised RPM limit (factory 4000 → up to 5500 RPM)

🧰 Stage 1, 2, 3 tuning (hybrid turbo support)

📂 Damos file support for all OS versions (on request)

ACDelco E41 — all 25 supported OS numbers, 17 services and prices from 455 € →
ACDelco E42 — 11 OS numbers for 2024+ trucks →

🛠️ ACDelco E66 – 3.0L Duramax LM2 / LZ0

Found in:

• Chevrolet Silverado 1500 / Tahoe
• GMC Sierra 1500 / Yukon
• Cadillac Escalade (3.0 Diesel)

Supported OS numbers:

12716399, 12728650, 12728651, 12732783, 12737066, 12739182, 12739668, 12742974, 12742975, 12747610, 12748818. Operating systems 12739182 and 12742975 belong to the 2023+ LZ0 engine.

Available tuning options:

✅ Emission deletes (DPF, EGR, SCR)

⚙️ Towing optimization / fuel economy tuning

📈 Boost, torque, and injection mapping

ACDelco E66 — all 11 supported OS numbers, prices from 440 €, DAMOS map packs →

🛠️ ACDelco E46 – 3.0L Duramax LM2 (2020–2022)

The first ECU platform for the 3.0L Duramax, fitted to 2020–2022 Silverado 1500 and Sierra 1500. It was superseded by the E66, so a 2022 truck can carry either — check the OS number, not the model year.

Supported OS numbers:

12714133, 12725101, 24000072, 24000425, 24001963.

Services include:

✅ Full emissions delete package

🔧 Improved drivability and throttle response

📊 Custom torque and turbo mapping

ACDelco E46 — all 5 supported OS numbers, prices from 450 € →

🛠️ ACDelco E98 – 2.8L Duramax LWN

Found in:

• Chevrolet Colorado 2.8 Duramax (2016–2022)
• GMC Canyon 2.8 Duramax (2016–2022)
• Chevrolet S10 / TrailBlazer 2.8 Duramax
• Chevrolet Express / GMC Savana 2.8

Supported OS numbers:

24000143, 24000172, 24000173, 24000174, 24000176, 55484589, 55488069, 55488112, 55491998, 55493455, 55503892, 55508105, 55597308.

Unlike the bigger Duramax controllers the E98 needs no send-in unlock service — HP Tuners licenses it for 4 credits and reads it over MPVI, and EFILive supports it as well. That is why a full delete here costs roughly half of what the 3.0L and 6.6L cost.

Services available:

✅ Full DPF, EGR and SCR/AdBlue deletes

🔧 Swirl flap and glow plug monitoring off

🧰 Stage 1 and Stage 2 tuning

📂 DAMOS map packs for any OS version

ACDelco E98 — all 13 supported OS numbers and prices from 260 € →

🛠️ Supported Tools

We support reading & writing Delco ECU with:

🖥️ FORScan

🔌GM SPS tool virtual reading (who having dealer access know how to do it)

🔌 AvtoKomander & EZLink

🎛️ HPtuners

💾 HPT workflow supported:

1️⃣ Read .hpt file (unlock ECU before that if need) → 2️⃣ Send to us → 3️⃣ Convert to .bin → 4️⃣ Edit in WinOLS & checksum → 5️⃣ Convert back to .hpt

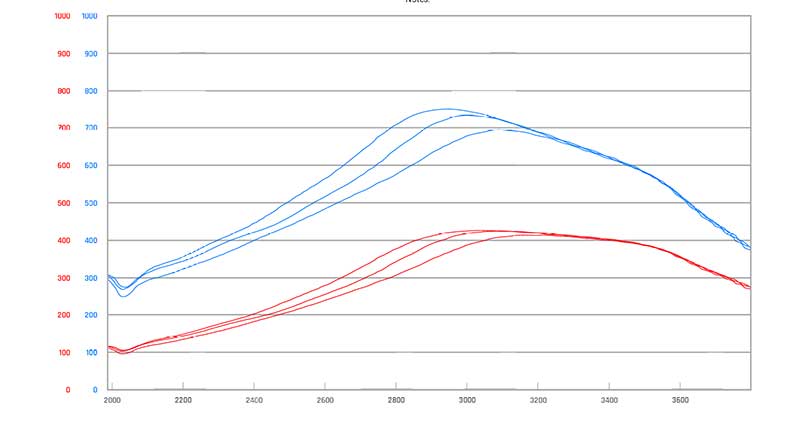

📊 Proven Results, Real Performance

Our calibrations go beyond simple deletes. All tuning files are:

✔️ Dyno-developed and tested

✔️ Safe for transmission and drivetrain

✔️ Designed to increase usable torque and power

✔️ Compatible with aftermarket upgrades (intake, exhaust, turbo)

🧠 Damos Support for Tuners & Developers

For advanced users, we offer Damos packages for:

• E41 / E42 — all L5P / L5D variants
• E66 — 3.0L LM2 / LZ0
• E46 — 3.0L LM2, 2020–2022
• E98 — 2.8L LWN

🔍 These include full map definitions (torque, injection, air/fuel, turbo, diagnostics, limiters) and are available on request.

A pack contains 60 000 to 90 000 uniquely described maps and is delivered as an OLS WinOLS project, as OLSX locked to your own WinOLS ID, or as an XDF built for your software on request. Available for any operating system of these controllers, including calibrations that are not published yet.

All models you can find in the list when creating a new order. Examples below:

⚡ Fast Delivery: 30 Minutes to 3 Hours

Need fast results? We deliver modified files in as little as 30 minutes, with guaranteed delivery within 3 hours.

🎯 Just upload your stock file via our secure system:

👉 https://fs.auto-remap.com

👨‍🔧 Trusted by Diesel Pros Across North America

AUTO-REMAP partners with:

• Diesel performance shops
• Fleet maintenance centers
• Off-road builders
• ECM/TCM tuning specialists
• Enthusiasts doing their own tuning

We deliver custom-tailored tuning, not generic files. Full support, fast turnaround, proven results.

📞 Contact Us

✅ Ready to unlock the full potential of your GM Duramax truck?

🌐 File service: https://fs.auto-remap.com

📩 Email: This email address is being protected from spambots. You need JavaScript enabled to view it.

💶 Check the price yourself

Pick your controller, your truck and the services you need — the calculator shows the final price with every bundle discount already applied, the same number the order form charges. No registration needed to see it.

If your OS number is not on the lists above, send us the original file: we develop and add a solution for any operating system of these controllers within 3 hours.

Open the ECU solutions section →

⚠️ Disclaimer

All emissions-related modifications are intended for off-road, race, or export use only. These solutions are not street legal in the United States where emissions laws apply. Use responsibly and in accordance with local regulations.
